Cutting machine

Desktop CNC plasma cutting machine with drilling tools

Send Inquiry

This type of Desktop CNC plasma cutting machine with drilling tools, is a high efficiency, precision plasma cutting machine, the use of a one-piece structure to make easy installation, rapid, small inertia, stable operation.Especially used for cutting medium and thin plate, the machine can be designed as a smoking table according to the user's requirements to meet the environmental requirements.

The Desktop CNC plasma cutting machine with drilling tools is designed for cutting all kinds of sheet metal parts in the company's comprehensive consumer market. The machine has fast cutting speed, good surface cutting quality, and can be equipped with suction smoke treatment device.The cutting speed is up to 10000mm/min.

Desktop CNC plasma cutting machine with drilling tools Product details display

Desktop CNC plasma cutting machine with drilling tools

Desktop CNC plasma cutting machine with drilling tools performance characteristics

1.Longitudinal use of bilateral synchronous drive system, longitudinal use of linear guide, so that the transmission is more stable, higher operation accuracy.

2.The beam is designed with light structure. The structure has good rigidity, light dead weight and small operating inertia.

3.With its own smoke treatment device, the whole machine structure tight.

4.Suitable for all kinds of sheet metal, complex graphics proofing, as well as mass production, save the complex punch mold, save the proofing time, reduce the cost.

5.Fast running speed, cutting speed can reach 10 meters/minute, suitable for batch processing, and laser processing speed can be comparable.

6.Low cost, 1/10 of the cost of laser.

7.Easy to use, easy to operate, CAD graphics directly into the code can be cut.

Desktop CNC plasma cutting machine with drilling tools Main technical parameters

型号M odel	MCQC-2040	MCQC-2060	MCQC-2080	MCQC-2560	MCQC-3060	MCQC-3080	MCQC-30100	MCQC-30120
有效切割宽度Effective cutting width (mm)	2000	2000	2000	2500	3000	3000	3000	3000
有效切割长度Effective cut length (mm)	4000	6000	8000	6000	6000	8000	10000	12000
标配割炬数量 Standard cutting torch number (套 set)	1	2	2	2	2	2	2	2
轨道长度track length (m)	4、6、8、10、12…… 轨道:2米/节 ,可任意选配轨道长度4、6、8、10、12…… Track: 2 m/section, optional length of track
割炬行程Cutting torch journey (mm)	150
切割厚度Cuttingthickness (mm)	火焰切割 Flame cutting:5 - 200 mm 等离子切割 plasma cutting:1 - 50 mm (根据等离子大小 according to plasma size)
切割速度Cuttingspeed (mm/min)	火焰切割 Flame cutting:0 - 1000 mm/min 等离子切割 plasma cutting:0 - 5000 mm/min
空程速度Idle speed (mm/min)	0 - 6000 mm/min
输入电源Power source	AC220 V/ 380 V 50HZ
驱动方式Drive method	双边驱动 Bilateral drive
机床驱动电机功率Machine drive motor power	800 W/ 2500W
切割方式Cuttingmode	火焰切割:氧气+乙炔、丙烷等离子切割:压缩空气、氧气、氮气等 Flame cutting: oxygen + acetylene, propane plasma cutting: compressed air, oxygen, nitrogen, etc

Desktop CNC plasma cutting machine with drilling tools Product Features:

1. Desktop CNC plasma cutting machine with drilling tools is a set of computer control, precision mechanical transmission, thermal cutting in one of the efficient, high precision, high reliability of cutting equipment.

Good man-machine interface makes the operation more convenient and simple, can quickly and accurately cut out a variety of complex shape plate, especially suitable for medium, thin non-ferrous metal plate, stainless steel and carbon steel plate automatic blanking.

It adopts integrated modular design, fast installation, easy to move.

2. Vertical and horizontal guide adopts domestic or imported linear guide, with high precision and good guidance.

The longitudinal guide adopts special rail, the surface is ground and arranged externally, which has high mechanical precision and wear resistance.

Drive rack, gear customized by professional manufacturers.

Transversal and longitudinal transmissions adopt German NEUGART or Japanese high precision, high torque, low back clearance, maintenance-free planetary gear reducer.

Desktop CNC plasma cutting machine with drilling tools

3. Servo drive adopts Panasonic servo drive system with position detection function, high motion precision, wide speed range and short acceleration time.

4. Dust removal table or dust treatment device can be optional to create a good working environment.

5. A variety of plasma power supply can be selected to meet the requirements of different metal material cutting.

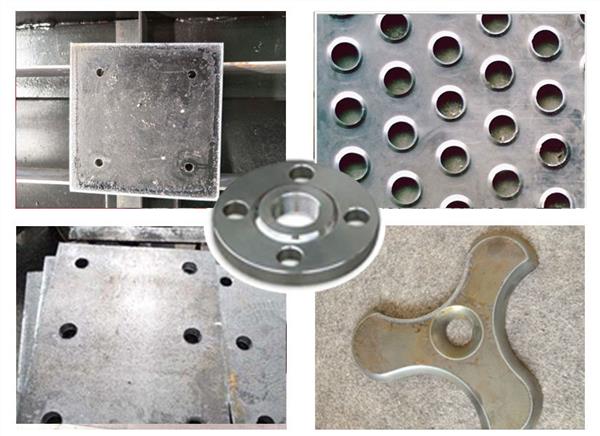

Desktop CNC plasma cutting machine with drilling tools Results show

Desktop CNC plasma cutting machine with drilling tools

FAQ

Q:How about your machine quality?We are worry about the quality.

A:JIUYING is a mature brand in China.through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.And where there are our machines, there are good reputation and terminal user satisfaction.

Q:May I send samples to test? Do you have a test fee or not?

A:Yes, if you could send us samples, it will be better.

Q:This is the first time I use this kind of machine, is it easy operate?

A:There are guide video that show how to use machine and english instruction book send to you with machine.If there is still have any question, we will provide free professinal guide for you until you could use machine well.

Q:MOQ for Desktop CNC plasma cutting machine with drilling tools?

A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
