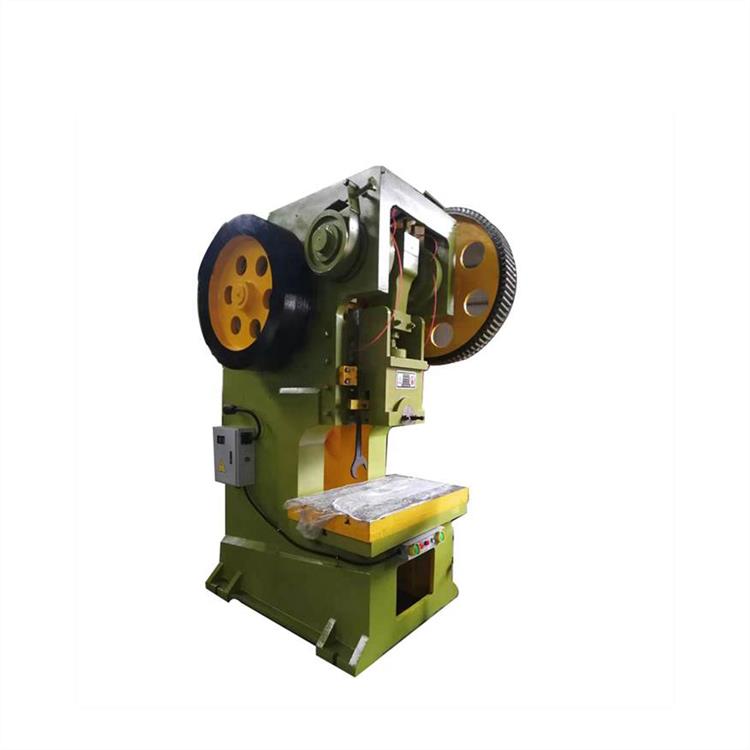

Punching machine of kitchen sink/wash basin production line
Punching machine of kitchen sink/wash basin production line
Punching machine for kitchen sink/wash basin production line are mainly used for cutting, stamping, blanking, bending and light stretching work.
1. The C-frame provides the maximum rigidity and minimum deflection to provide precise parts and long tool life. Steel welded frame, compact with high rigidity and small deformation. Thick plates and large columns provide a stable platform for your demanding applications.
2. The large frame eliminates vibration, improves the service life of IDE, and improves the economy and practicability of the machine. The operating space is very wide, and the movable bolster can be moved out of the frame to fix the mold.
3. High precision, high efficiency, simple and convenient operation, good performance, favorable price and good service.
Punching machine for kitchen sink/wash basin production line product parameter
| Project | Unit | 16T | |
| Nominal capacity | N | 160 | |
| Nominal pressure stroke | mm | 5 | |
| Sliding stroke | mm | 60 | |
| Number of swipes | Times/minute | 140 | |
| Maximum closing height | mm | 170 | |
| Mold height adjustment | mm | 40 | |
| The distance between the center of the slider and the machine | mm | 160 | |
| Working desk size | Front and back | mm | 300 |
| Left and right | mm | 480 | |
| Diameter of retaining hole | Front and back | mm | 110 |
| Left and right | mm | 220 | |
| depth | mm | 160 | |
| Polar distance | mm | 220 | |
| Slider bottom hole | Front and back | mm | 180 |
| Left and right | mm | 200 | |
| Mold inner hole size | diameter | mm | 35 |
| depth | mm | 60 | |
| Pad thickness | mm | 50 | |
| Body tilt angle | ° | 30 | |
| Motor Power | kw | 1.5 | |
| Size | mm | 1130x750x1890 | |
As one of the professional Sink/Wash basin production line machines/equipments, this product has a very important role. If you want to know more about Sink/Wash basin production line machines/equipments, you can click to view the details, or contact us directly.
· FAQ
· Q1.Is the punching machine of kitchen sink/wash basin production line your factory products ?
· A: YES!
· Q2:How to choose the punching machine of kitchen sink/wash basin production line?
· A：We need know the diameters of the hole and the chickness.
· Q3:How to install the punching machine of kitchen sink/wash basin production line?
· A:it will be shipped complete machine,it will can be used when arrived.
· Q4.Is it easy to operate the punching machine of kitchen sink/wash basin production line?
· A:Yes it is easy opperate.
