Slitting/Uncoiler machine

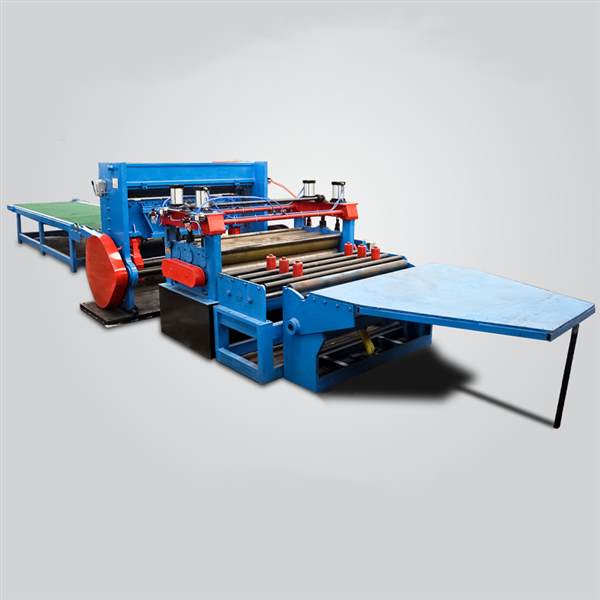

Automatic uncoiler for kitchen sink and wash basin production line
Automatic uncoiler for kichen sink and wash basin production line is a flexible metal forming plant that uses a number of different sheet metal fabrication equipment to form a highly efficient manufacturing line.
This series of production lines are used to process thin coils of different specifications, suitable for processing cold-rolled sheets, galvanized sheets, color-coated sheets, and stainless steel sheets. After uncoiling, leveling, and shearing, it becomes a flat sheet of the required length.
This metal sink/wash basin production line can greatly help you increase your manufacturing output and efficiency.
Automatic cut to length line composed devices
1. Hydraulic entry coil car
2. de-coiler
3. Hydraulic press and guide and pinch device
4. Hydraulic head-cutting machine
5. Looper I
6. Side guide device
7. Slitting machine
8. Scrap winder
9. Looper II
10. Hydraulic damping and pre-dividing and press device
11. Recoiler
12. Hydraulic exit coil car
13. Electric control system
14. Hydraulic system
Model and technical parameters of automatic cut to length line
| model | JY-2X750 | JY-2x1250 | JY-3X1600 | JY-4X1600 | JY-4X2000 |
| Material | Cold rolled, hot rolled, stainless steel coil, galvanized coil, color coated coil, aluminum coil, pickled coil, copper coil | ||||
| thickness | 0.2-2 mm | 0.2-2 mm | 0.3-3mm | 0.5-4 mm | 0.5-4mm |
| width | 200-750 | 500-1250 | 500-1600 | 500-1600 | 600-2000 |
| Roll weight | 10T/15T | 10T/15T | 15T/20T | 20T/25T | 20T/25T/30T |
| Line speed | 0~80m/min | 0~80m/min | 0~80m/min | 0~60m/min | 0~60m/min |
| Number of leveling rollers | 21 rolls | 21 rolls | 19 rolls | 17 rolls | 17 rolls |
| Leveling machine design | 4 rollers/6 rollers | 4 rollers/6 rollers | 4 rollers/6 rollers | 4 rollers/6 rollers | 4 rollers/6 rollers |
| Cutting length accuracy | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
The above parameters are only for reference (can be customized according to customer requirements)
As one of the professional Kitchen sink/wash basin production line machines and equipments, this product has a very important role. If you want to know more about Kitchen sink/wash basin production line machines and equipments, you can click to view the details, or contact us directly.
FAQ
Q1.Do your company is Trade company or factory?
A: We are factory,
Q2:How to choose automatic uncoiler for kichen sink and wash basin production line?
A：Plz tell us the width and thickness of you stainless steel coiler
Q3:How many years of the automatic uncoiler for kichen sink and wash basin production line warranty time?
A:two years
Q4.Is it easy to operate the machine?
A:We will training your workers. After training, they can operate the automatic uncoiler for kichen sink and wash basin production line easily.
Q5.Is the automatic uncoiler for kichen sink and wash basin production line can be customized according to our requirements,
A:Yes it is ok,we have professional engineer for the customized machines
