H-beam profile production line machines and equipments
H-beam profile assembling machine
H-beam profile assembling machine performance and character

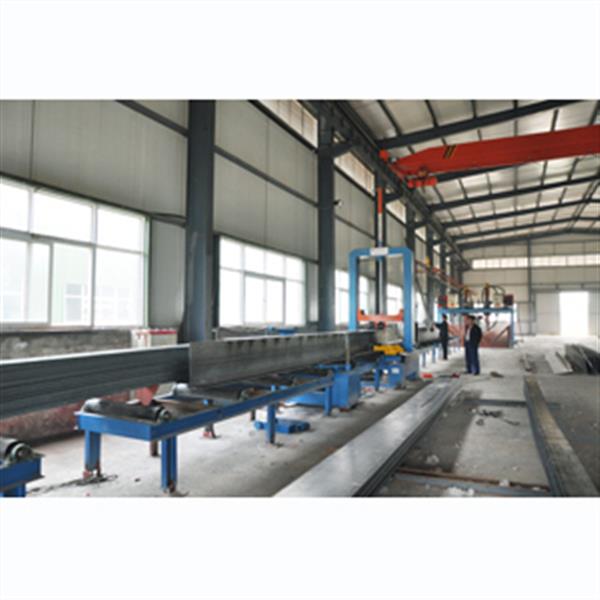

H-beam profile assembling machine is a kind of full-automatic assembly equipment for H-beam developed by ourselves based on broad market investigation and inquiry on customers. Assembling precison is better and speed is fast, maturate and steady, which have been manufactured in large batch and used in the market.
in and wheel), the motion will be changed into linear traveling by the lead screw. It pushes the flange and web clamping wheel at both sides at the same time to finish the flange and web clamping and alignment. Flange and web plate adopts hydraulic cylinder pushing, not only with large strangth, but also increasing the flange and web clamping flexible. When the flange width is not equal or not regulated for cutting reason, or the thickness is variable for the web connecting welding seam, it can avoid the workpiece pass trouble automaticly.
H-beam profile assembling machine Range of supply and consistence unit
Assembling machine body including main frame, up gantry frame, flange and web synchronous clamping and alignment system, main transmission motor reducer, etc.
Input conveyor including powered and idle conveyor 2.6m×3 sets total,
Output conveyor including powered and idle conveyor 2.6m×3 sets total.
Hydraulic system including oil pump station, high pressure oil pipe, hydraulic cylinder, etc.
Electrical control system including electrical cabinet, PLC, AC inverter, etc.
Automatic spot welding system including CO2 Welding machine two sets (Optional), automatic arc guiding and spot welding unit.
Spare part including pushbutton 2 pieces, DC24V relay 2 pieces.
H-beam profile assembling machine Technical document
Machine manual book (Includes electrical diagram and hydraulic diagram, etc.)
PLC program manual book, inveter manual book, hydraulic pump station manual book, CO2 Welding machine manual book.
Delivery list.
Equipment certificate.
Foundation drawing.
As one of the professional H-beam profile production line machines and equipments, this product plays a very important role. If you want to know more about H-beam profile production line machines and equipments, you can click to view the details, or contact us directly.
