Steel door production line machines and equipments
Door plate transfer printing machine
After the anti-theft door is formed, transfer printing shall be carried out by selecting the whole door fan after the forming of the single-side heating machine. First, spray the plastic powder with the electrostatic spray gun, and then put the door plate on the working table of the machine after high temperature curing in the oven or assembly line. Then, transfer printing paper shall be placed on the side of the door according to the size of the door plate.Simple pattern of the transfer paper printing ink surface facing directly to the door plank of complex pattern after the transfer printing paper crumpled the ink surface cover for door machine cover to hold transfer paper began to push the workbench in vacuum machine transfer inside four or five minutes after taking machine workbench jie turning printing paper again with the same method over the door plank, transfer the back door, four or five minutes after taking machine workbench transfer paper off and lateral transfer paper is finished off, door plank gloss depends on the molding powder, plastic powder has high flat matte frosted, want more light can cover a layer of light oil.
Name: Door plate transfer printing machine
Model:JYDP-3011

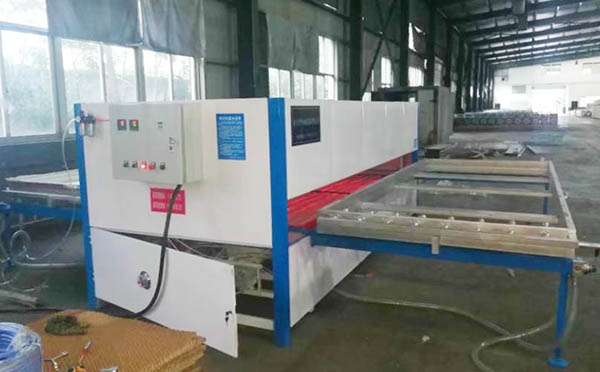

Equipment Reference Picture：
Main Parameters
Special | 3100*1100 |
Worktable | 3200*1300 |
Power | 70KW |
Energy consumption | 380V |
Working temperature | 240℃ |
Maximum temperature | 280℃ |
Temperature precision | +-5℃ |
Size | 4100*1700*1600(L*W*H) |
Pressure | 0.04 |
Door frame pumped bag transfer printing machine
Name: Door frame transfer printing machine
Model:JYDP-6000
Equipment Reference Picture：
Main parameters
Effective working area | 1400*6000（ Effective working area ） |
Working table inner diameter | 1700*6300 |
Power rating | 120KW |
Energy consumption | 48KW/h |
Rated voltage | 380V |
Working temperature | 240℃ |
Maximum temperature | 280℃ |
Temperature precision | +-5℃ |
Size | 7100*2000*1600（L*W*H） |
Two workbench expansion area | 7100*5600**1600（L*W*H） |
Pressure | 0.04 |
Application areas: | Single metal material, such as square tube, circular tube, profile, etc. |
